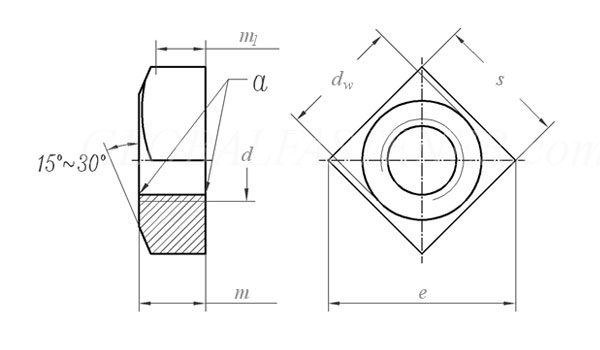

| Size (M) |
Pitch | dw MIN | e MAX | e MIN | m NOMINAL max | m MIN | mw MIN | s NOMINAL max | s min | Weight (kg/1000 pc) |
|---|---|---|---|---|---|---|---|---|---|---|
| M5 | 0.8 | 6.7 | 11.3 | 9.93 | 4 | 3.52 | 2.5 | 8 | 7.64 | 1.31 |
| M6 | 1 | 8.7 | 14.1 | 12.53 | 5 | 4.52 | 3.2 | 10 | 9.64 | 2.77 |
| M8 | 1.25 | 11.5 | 18.4 | 16.34 | 6.5 | 5.92 | 4.1 | 13 | 12.57 | 5.5 |
| M10 | 1.5 | 14.5 | 22.6 | 20.24 | 8 | 7.42 | 5.2 | 16 | 15.57 | 10.7 |
| M10 | 15.5 | 24 | 21.54 | 17 | 16.57 | 13 | ||||
| M12 | 1.75 | 16.5 | 25.4 | 22.84 | 10 | 9.42 | 6.6 | 18 | 17.57 | 16.3 |
| M12 | 17.2 | 26.9 | 24.02 | 19 | 18.48 | 19.1 | ||||
| M16 | 2 | 22 | 33.9 | 30.11 | 13 | 12.3 | 8.6 | 24 | 23.16 | 38.2 |

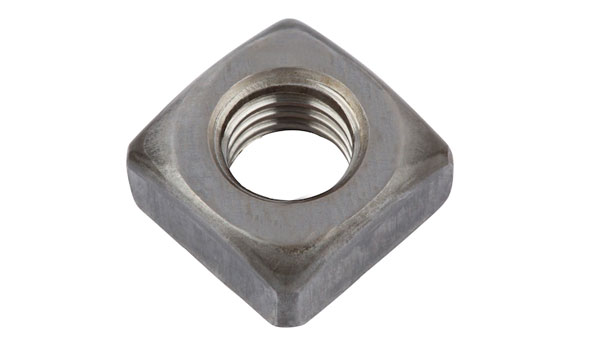

DIN 557 square nuts may seem like a small and insignificant component, but they play a crucial role in various industries and applications. These nuts are designed with a square shape, providing a higher level of torque resistance compared to traditional hex nuts. This makes them ideal for applications that require a more secure and stable connection, such as in heavy machinery, automotive assembly, and construction projects. The square shape also allows for easy installation and removal using a standard wrench or socket, providing convenience and efficiency during assembly or maintenance. Additionally, DIN 557 square nuts are manufactured to meet strict industry standards, ensuring consistent quality, durability, and reliability. Whether it's securing bolts in a manufacturing plant or holding together critical components in a structural project, DIN 557 square nuts offer a dependable solution for fastening needs.
