DIN 558

Fully Threaded Hexagon Screws / Bolts

DIN 558

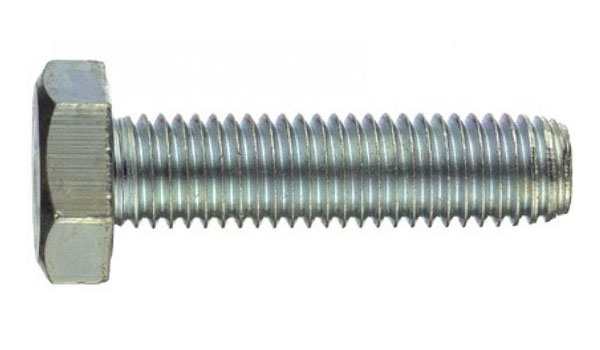

din558

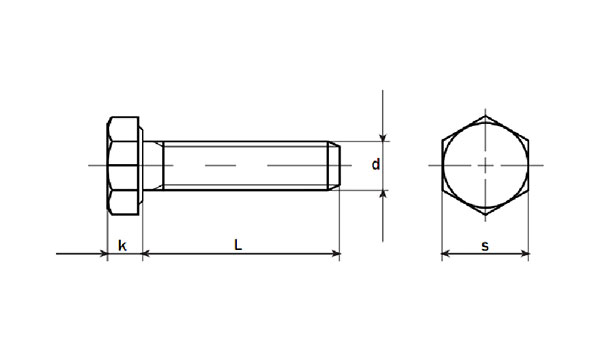

din558

Steel Grades: 4.6, 4.8, 8.8

Finish: Self, Black, Bright Zinc, Hot Dip Galvanized

Note: All data for information purpose only. For more details on product standards or dimensions, please feel free to contact us at info@rsgfasteners.com


Dimension
(M)		 Length
(MM)		 b (mm) k (mm) s (mm) e (mm) Weight
(kg 1000 pc)
M5 16   3.5 8 8.63 3.40
M5 20   3.5 8 8.63 3.90
M5 25   3.5 8 8.63 4.50
M5 30   3.5 8 8.63 5.10
M5 35   3.5 8 8.63 5.70
M5 40   3.5 8 8.63 6.40
M5 45   3.5 8 8.63 7.00
M5 50   3.5 8 8.63 7.60
M5 55   3.5 8 8.63 8.20
M5 60   3.5 8 8.63 8.20
M6 10   4 10 10.89 5.10
M6 12   4 10 10.89 5.10
M6 16   4 10 10.89 5.10
M6 20   4 10 10.89 5.80
M6 25   4 10 10.89 6.70
M6 30   4 10 10.89 7.50
M6 35   4 10 10.89 8.40
M6 40   4 10 10.89 9.20
M6 45   4 10 10.89 10.10
M6 50   4 10 10.89 11.00
M6 55   4 10 10.89 11.80
M6 60   4 10 10.89 12.70
M6 65   4 10 10.89 13.50
M6 70   4 10 10.89 14.40
M8 10   5.5 13 14.2 11.10
M8 12   5.5 13 14.2 11.10
M8 16   5.5 13 14.2 11.10
M8 20   5.5 13 14.2 12.30
M8 25   5.5 13 14.2 13.90
M8 30   5.5 13 14.2 15.50
M8 35   5.5 13 14.2 17.10
M8 40   5.5 13 14.2 18.70
M8 45   5.5 13 14.2 20.30
M8 50   5.5 13 14.2 21.80
M8 55   5.5 13 14.2 23.30
M8 60   5.5 13 14.2 24.80
M8 65   5.5 13 14.2 26.30
M8 70   5.5 13 14.2 27.80
M8 80   5.5 13 14.2 30.80
M8 90   5.5 13 14.2 33.80
M8 100   5.5 13 14.2 36.80
M10 12   7 17 18.72 21.20
M10 16   7 17 18.72 21.20
M10 20   7 17 18.72 23.20
M10 25   7 17 18.72 25.70
M10 30   7 17 18.72 28.20
M10 35   7 17 18.72 30.70
M10 40   7 17 18.72 33.20
M10 45   7 17 18.72 35.70
M10 50   7 17 18.72 38.20
M10 55   7 17 18.72 40.70
M10 60   7 17 18.72 43.40
M10 65   7 17 18.72 45.90
M10 70   7 17 18.72 48.50
M10 80   7 17 18.72 53.70
M10 90   7 17 18.72 58.90
M10 100   7 17 18.72 64.10
M12 16   8 19 20.88 30.20
M12 20   8 19 20.88 33.00
M12 25   8 19 20.88 36.60
M12 30   8 19 20.88 40.20
M12 35   8 19 20.88 43.80
M12 40   8 19 20.88 47.40
M12 45   8 19 20.88 51.00
M12 50   8 19 20.88 54.50
M12 55   8 19 20.88 58.10
M12 60   8 19 20.88 61.70
M12 65   8 19 20.88 65.30
M12 70   8 19 20.88 68.90
M12 80   8 19 20.88 76.10
M12 90   8 19 20.88 83.30
M12 100   8 19 20.88 90.50
M14 20   9 22 23.91 48.00
M14 25   9 22 23.91 55.00
M14 30   9 22 23.91 53.90
M14 35   9 22 23.91 62.90
M14 40   9 22 23.91 67.90
M14 45   9 22 23.91 72.90
M14 50   9 22 23.91 77.90
M14 55   9 22 23.91 82.90
M14 60   9 22 23.91 87.90
M14 65   9 22 23.91 92.80
M14 70   9 22 23.91 79.80
M14 80   9 22 23.91 107.00
M14 90   9 22 23.91 117.00
M14 100   9 22 23.91 127.00
M16 20   10 24 26.17 83.50
M16 25   10 24 26.17 70.20
M16 30   10 24 26.17 76.90
M16 35   10 24 26.17 88.50
M16 40   10 24 26.17 90.90
M16 45   10 24 26.17 97.10
M16 50   10 24 26.17 108.00
M16 55   10 24 26.17 110.00
M16 60   10 24 26.17 117.00
M16 65   10 24 26.17 123.00
M16 70   10 24 26.17 130.00
M16 80   10 24 26.17 144.00
M16 90   10 24 26.17 158.00
M16 100   10 24 26.17 172.00
M20 25   13 30 32.95 126
M20 30   13 30 32.95 136
M20 35   13 30 32.95 147
M20 40   13 30 32.95 157
M20 45   13 30 32.95 167
M20 50   13 30 32.95 178
M20 55   13 30 32.95 188
M20 60   13 30 32.95 199
M20 65   13 30 32.95 209
M20 70   13 30 32.95 219
M20 80   13 30 32.95 240
M20 90   13 30 32.95 261
M20 100   13 30 32.95 282
M24 30   15 36 39.55 214
M24 35   15 36 39.55 229
M24 40   15 36 39.55 244
M24 45   15 36 39.55 259
M24 50   15 36 39.55 274
M24 55   15 36 39.55 289
M24 60   15 36 39.55 304
M24 65   15 36 39.55 319
M24 70   15 36 39.55 335
M24 80   15 36 39.55 363
M24 90   15 36 39.55 382
M24 100   15 36 39.55 401

DIN 558 and ISO 4017 are two widely used standards for hexagonal screws. These screws, also known as hex bolts, are a fundamental component in various industries, including construction, automotive, and machinery. The design of DIN 558 and ISO 4017 screws ensures a secure and reliable fastening solution. These screws feature a hexagonal head, allowing for easy installation and removal using a wrench or socket. The threading on these screws is typically coarse, providing excellent grip and stability in different applications. They come in a range of materials, such as stainless steel, carbon steel, and alloy steel, offering versatility and durability in diverse environments. DIN 558 and ISO 4017 hexagonal screws are engineered to withstand high loads and offer a reliable solution for fastening components and structures. Whether you're assembling machinery or constructing a building, these standardized screws provide the strength and reliability needed for a wide range of applications.
