DIN 608

Countersunk Square Bolts (Short Neck)

DIN 608 - Countersunk Square Bolts (Short Neck)

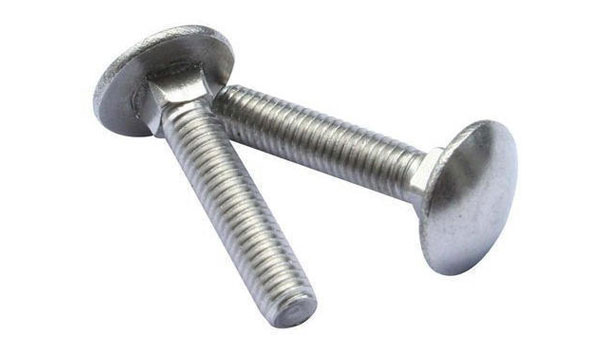

din608

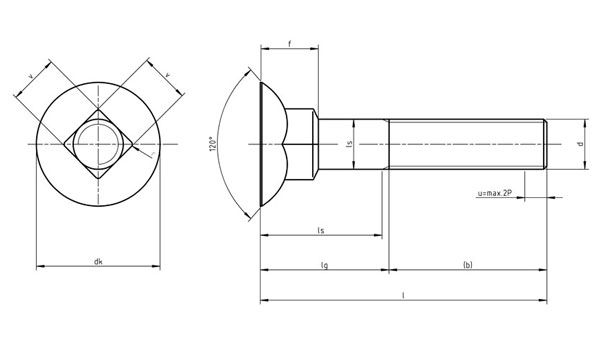

din608

Steel Grades: 4.6, 4.8, 8.8

Finish: Self, Black, Bright Zinc, Hot Dip Galvanized

Note: All data for information purpose only. For more details on product standards or dimensions, please feel free to contact us at info@rsgfasteners.com


Dimension
(M)
Length
(MM)
Pitch b f f ds ds dk dk r l(mm) l(mm) Weight
(kg 1000 pc)
        Min Max Min Max Min Max Max Min Max
M10 25 1.5 26 7.55 8.45 9.42 10 18.35 19.65 1.5 23.95 26.05 18.2
M10 30 1.5 26 7.55 8.45 9.42 10 18.35 19.65 1.5 28.95 31.05 20.7
M10 35 1.5 26 7.55 8.45 9.42 10 18.35 19.65 1.5 33.75 36.25 23.2
M10 40 1.5 26 7.55 8.45 9.42 10 18.35 19.65 1.5 38.75 41.25 25.7
M10 45 1.5 26 7.55 8.45 9.42 10 18.35 19.65 1.5 43.75 46.25 28.8
M10 50 1.5 26 7.55 8.45 9.42 10 18.35 19.65 1.5 48.75 51.25 31.9
M12 30 1.75 30 9.95 11.05 11.3 12 23.35 24.65 1.8 28.95 31.05 33.0
M12 35 1.75 30 9.95 11.05 11.3 12 23.35 24.65 1.8 33.75 36.25 36.6
M12 40 1.75 30 9.95 11.05 11.3 12 23.35 24.65 1.8 38.75 41.25 40.2
M12 45 1.75 30 9.95 11.05 11.3 12 23.35 24.65 1.8 43.75 46.25 43.8
M12 50 1.75 30 9.95 11.05 11.3 12 23.35 24.65 1.8 48.75 51.25 48.2

DIN 608 flat countersunk square neck bolts are a specialized type of fastener that offer unique benefits in various applications. These bolts feature a flat, countersunk head that sits flush with the surface, providing a sleek and finished appearance. The square neck design adds an extra layer of security, preventing the bolt from rotating during installation or removal. This makes them particularly useful in situations where vibrations or movement may loosen traditional bolts. Additionally, the square neck allows for easy tightening with a wrench or socket, ensuring a snug and secure fit. Whether used in construction, machinery, or furniture assembly, DIN 608 bolts offer reliable and efficient fastening capabilities. Their precise design and high-quality materials make them resistant to corrosion and capable of withstanding heavy loads and harsh environments. When it comes to durability, ease of use, and aesthetic appeal, DIN 608 flat countersunk square neck bolts are a top choice for professionals and DIY enthusiasts alike.
