DIN 610

Hexagon Fit Bolts with Short Threaded Point

DIN 610 - 1993 Hexagon Fit Bolts with Short Threaded Point

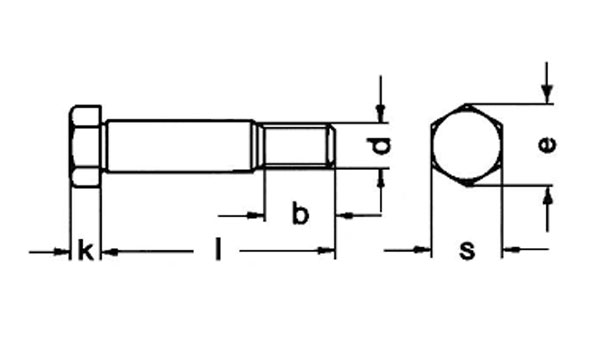

din610
din610

Steel Grades: 4.6, 4.8, 8.8

Finish: Self, Black, Bright Zinc, Hot Dip Galvanized

Note: All data for information purpose only. For more details on product standards or dimensions, please feel free to contact us at info@rsgfasteners.com


Dimension
(M)		 Length
(MM)		 Pitch Pitch Pitch b (mm) b (mm) b (mm) k (mm) k (mm) s (mm) s (mm) e (mm) Weight
(kg 1000 pc)
    Coarse thread Fine thread-1 Fine thread-2 L≤50 50＜L≤150 L＞150 Min Max Min Max Min
M8 25 1.25 1   11.5 13.5 18.5 5.15 5.45 12.73 13 14.38 16.5
M8 28 1.25 1   11.5 13.5 18.5 5.15 5.45 12.73 13 14.38 19
M8 30 1.25 1   11.5 13.5 18.5 5.15 5.45 12.73 13 14.38 20
M8 32 1.25 1   11.5 13.5 18.5 5.15 5.45 12.73 13 14.38 21
M8 35 1.25 1   11.5 13.5 18.5 5.15 5.45 12.73 13 14.38 22.5
M8 38 1.25 1   11.5 13.5 18.5 5.15 5.45 12.73 13 14.38 24
M8 40 1.25 1   11.5 13.5 18.5 5.15 5.45 12.73 13 14.38 25
M8 42 1.25 1   11.5 13.5 18.5 5.15 5.45 12.73 13 14.38 26
M8 45 1.25 1   11.5 13.5 18.5 5.15 5.45 12.73 13 14.38 27.5
M8 48 1.25 1   11.5 13.5 18.5 5.15 5.45 12.73 13 14.38 29.5
M8 50 1.25 1   11.5 13.5 18.5 5.15 5.45 12.73 13 14.38 30
M8 55 1.25 1   11.5 13.5 18.5 5.15 5.45 12.73 13 14.38 32.5
M8 60 1.25 1   11.5 13.5 18.5 5.15 5.45 12.73 13 14.38 35
M8 65 1.25 1   11.5 13.5 18.5 5.15 5.45 12.73 13 14.38 37.5
M8 70 1.25 1   11.5 13.5 18.5 5.15 5.45 12.73 13 14.38 40
M8 75 1.25 1   11.5 13.5 18.5 5.15 5.45 12.73 13 14.38 42.5
M8 80 1.25 1   11.5 13.5 18.5 5.15 5.45 12.73 13 14.38 45
M10 28 1.5 1.25 1 13.5 15.5 20.5 6.22 6.58 15.73/16.74 16/(17) 17.77/18.10 32.7
M10 30 1.5 1.25 1 13.5 15.5 20.5 6.22 6.58 15.73/16.75 16/(17) 17.77/18.11 34.1
M10 32 1.5 1.25 1 13.5 15.5 20.5 6.22 6.58 15.73/16.76 16/(17) 17.77/18.12 35.6
M10 35 1.5 1.25 1 13.5 15.5 20.5 6.22 6.58 15.73/16.77 16/(17) 17.77/18.13 37.9
M10 38 1.5 1.25 1 13.5 15.5 20.5 6.22 6.58 15.73/16.78 16/(17) 17.77/18.14 40.1
M10 40 1.5 1.25 1 13.5 15.5 20.5 6.22 6.58 15.73/16.79 16/(17) 17.77/18.15 41.6
M10 42 1.5 1.25 1 13.5 15.5 20.5 6.22 6.58 15.73/16.80 16/(17) 17.77/18.16 43.1
M10 45 1.5 1.25 1 13.5 15.5 20.5 6.22 6.58 15.73/16.81 16/(17) 17.77/18.17 45.3
M10 48 1.5 1.25 1 13.5 15.5 20.5 6.22 6.58 15.73/16.82 16/(17) 17.77/18.18 47.6
M10 50 1.5 1.25 1 13.5 15.5 20.5 6.22 6.58 15.73/16.83 16/(17) 17.77/18.19 49.1
M10 55 1.5 1.25 1 13.5 15.5 20.5 6.22 6.58 15.73/16.84 16/(17) 17.77/18.20 52.3
M10 60 1.5 1.25 1 13.5 15.5 20.5 6.22 6.58 15.73/16.85 16/(17) 17.77/18.21 56
M10 65 1.5 1.25 1 13.5 15.5 20.5 6.22 6.58 15.73/16.86 16/(17) 17.77/18.22 59.8
M10 70 1.5 1.25 1 13.5 15.5 20.5 6.22 6.58 15.73/16.87 16/(17) 17.77/18.23 63.5
M10 75 1.5 1.25 1 13.5 15.5 20.5 6.22 6.58 15.73/16.88 16/(17) 17.77/18.24 67.2
M10 80 1.5 1.25 1 13.5 15.5 20.5 6.22 6.58 15.73/16.89 16/(17) 17.77/18.25 70.9
M10 85 1.5 1.25 1 13.5 15.5 20.5 6.22 6.58 15.73/16.90 16/(17) 17.77/18.26 74.7
M10 90 1.5 1.25 1 13.5 15.5 20.5 6.22 6.58 15.73/16.91 16/(17) 17.77/18.27 78.4
M10 95 1.5 1.25 1 13.5 15.5 20.5 6.22 6.58 15.73/16.92 16/(17) 17.77/18.28 82.1
M10 100 1.5 1.25 1 13.5 15.5 20.5 6.22 6.58 15.73/16.93 16/(17) 17.77/18.29 85.9
M12 30 1.75 1.25 1.5 15.5 17.5 22.5 7.21 7.79 17.57/18.48 18/(19) 19.85/20.85 47.7
M12 32 1.75 1.25 1.5 15.5 17.5 22.5 7.21 7.79 17.57/18.49 18/(19) 19.85/20.86 49.8
M12 35 1.75 1.25 1.5 15.5 17.5 22.5 7.21 7.79 17.57/18.50 18/(19) 19.85/20.87 52.9
M12 38 1.75 1.25 1.5 15.5 17.5 22.5 7.21 7.79 17.57/18.51 18/(19) 19.85/20.88 56
M12 40 1.75 1.25 1.5 15.5 17.5 22.5 7.21 7.79 17.57/18.52 18/(19) 19.85/20.89 58.1
M12 42 1.75 1.25 1.5 15.5 17.5 22.5 7.21 7.79 17.57/18.53 18/(19) 19.85/20.90 60.2
M12 45 1.75 1.25 1.5 15.5 17.5 22.5 7.21 7.79 17.57/18.54 18/(19) 19.85/20.91 63.3
M12 48 1.75 1.25 1.5 15.5 17.5 22.5 7.21 7.79 17.57/18.55 18/(19) 19.85/20.92 66.4
M12 50 1.75 1.25 1.5 15.5 17.5 22.5 7.21 7.79 17.57/18.56 18/(19) 19.85/20.93 68.5
M12 55 1.75 1.25 1.5 15.5 17.5 22.5 7.21 7.79 17.57/18.57 18/(19) 19.85/20.94 73.1
M12 60 1.75 1.25 1.5 15.5 17.5 22.5 7.21 7.79 17.57/18.58 18/(19) 19.85/20.95 78.3
M12 65 1.75 1.25 1.5 15.5 17.5 22.5 7.21 7.79 17.57/18.59 18/(19) 19.85/20.96 83.5
M12 70 1.75 1.25 1.5 15.5 17.5 22.5 7.21 7.79 17.57/18.60 18/(19) 19.85/20.97 88.7
M12 75 1.75 1.25 1.5 15.5 17.5 22.5 7.21 7.79 17.57/18.61 18/(19) 19.85/20.98 93.9
M12 80 1.75 1.25 1.5 15.5 17.5 22.5 7.21 7.79 17.57/18.62 18/(19) 19.85/20.99 99.1
M12 85 1.75 1.25 1.5 15.5 17.5 22.5 7.21 7.79 17.57/18.63 18/(19) 19.85/20.100 104
M12 90 1.75 1.25 1.5 15.5 17.5 22.5 7.21 7.79 17.57/18.64 18/(19) 19.85/20.101 109
M12 95 1.75 1.25 1.5 15.5 17.5 22.5 7.21 7.79 17.57/18.65 18/(19) 19.85/20.102 114
M12 100 1.75 1.25 1.5 15.5 17.5 22.5 7.21 7.79 17.57/18.66 18/(19) 19.85/20.103 119
M12 105 1.75 1.25 1.5 15.5 17.5 22.5 7.21 7.79 17.57/18.67 18/(19) 19.85/20.104 125
M12 110 1.75 1.25 1.5 15.5 17.5 22.5 7.21 7.79 17.57/18.68 18/(19) 19.85/20.105 130
M12 115 1.75 1.25 1.5 15.5 17.5 22.5 7.21 7.79 17.57/18.69 18/(19) 19.85/20.106 135
M12 120 1.75 1.25 1.5 15.5 17.5 22.5 7.21 7.79 17.57/18.70 18/(19) 19.85/20.107 140
M14 32 2 1.25   17 19 24 8.51 9.09 20.16/21.15 21/(22) 22.78/23.91 69.9
M14 35 2 1.25   17 19 24 8.51 9.09 20.16/21.16 21/(22) 22.78/23.92 74.1
M14 38 2 1.25   17 19 24 8.51 9.09 20.16/21.17 21/(22) 22.78/23.93 78.3
M14 40 2 1.25   17 19 24 8.51 9.09 20.16/21.18 21/(22) 22.78/23.94 81
M14 42 2 1.25   17 19 24 8.51 9.09 20.16/21.19 21/(22) 22.78/23.95 83.8
M14 45 2 1.25   17 19 24 8.51 9.09 20.16/21.20 21/(22) 22.78/23.96 88
M14 48 2 1.25   17 19 24 8.51 9.09 20.16/21.21 21/(22) 22.78/23.97 92.1
M14 50 2 1.25   17 19 24 8.51 9.09 20.16/21.22 21/(22) 22.78/23.98 94.9
M14 55 2 1.25   17 19 24 8.51 9.09 20.16/21.23 21/(22) 22.78/23.99 101
M14 60 2 1.25   17 19 24 8.51 9.09 20.16/21.24 21/(22) 22.78/23.100 108
M14 65 2 1.25   17 19 24 8.51 9.09 20.16/21.25 21/(22) 22.78/23.101 115
M14 70 2 1.25   17 19 24 8.51 9.09 20.16/21.26 21/(22) 22.78/23.102 122
M14 75 2 1.25   17 19 24 8.51 9.09 20.16/21.27 21/(22) 22.78/23.103 129
M14 80 2 1.25   17 19 24 8.51 9.09 20.16/21.28 21/(22) 22.78/23.104 136
M14 85 2 1.25   17 19 24 8.51 9.09 20.16/21.29 21/(22) 22.78/23.105 143
M14 90 2 1.25   17 19 24 8.51 9.09 20.16/21.30 21/(22) 22.78/23.106 150
M14 95 2 1.25   17 19 24 8.51 9.09 20.16/21.31 21/(22) 22.78/23.107 156
M14 100 2 1.25   17 19 24 8.51 9.09 20.16/21.32 21/(22) 22.78/23.108 163
M14 105 2 1.25   17 19 24 8.51 9.09 20.16/21.33 21/(22) 22.78/23.109 170
M14 110 2 1.25   17 19 24 8.51 9.09 20.16/21.34 21/(22) 22.78/23.110 177
M14 115 2 1.25   17 19 24 8.51 9.09 20.16/21.35 21/(22) 22.78/23.111 184
M14 120 2 1.25   17 19 24 8.51 9.09 20.16/21.36 21/(22) 22.78/23.112 191
M16 35 2 1.5   19 21 26 9.71 10.29 23.16 24 26.17 98.3
M16 38 2 1.5   19 21 26 9.71 10.29 23.16 24 26.17 104
M16 40 2 1.5   19 21 26 9.71 10.29 23.16 24 26.17 107
M16 42 2 1.5   19 21 26 9.71 10.29 23.16 24 26.17 111
M16 45 2 1.5   19 21 26 9.71 10.29 23.16 24 26.17 116
M16 48 2 1.5   19 21 26 9.71 10.29 23.16 24 26.17 121
M16 50 2 1.5   19 21 26 9.71 10.29 23.16 24 26.17 125
M16 55 2 1.5   19 21 26 9.71 10.29 23.16 24 26.17 133
M16 60 2 1.5   19 21 26 9.71 10.29 23.16 24 26.17 142
M16 65 2 1.5   19 21 26 9.71 10.29 23.16 24 26.17 151
M16 70 2 1.5   19 21 26 9.71 10.29 23.16 24 26.17 160
M16 75 2 1.5   19 21 26 9.71 10.29 23.16 24 26.17 169
M16 80 2 1.5   19 21 26 9.71 10.29 23.16 24 26.17 178
M16 85 2 1.5   19 21 26 9.71 10.29 23.16 24 26.17 187
M16 90 2 1.5   19 21 26 9.71 10.29 23.16 24 26.17 195
M16 95 2 1.5   19 21 26 9.71 10.29 23.16 24 26.17 204
M16 100 2 1.5   19 21 26 9.71 10.29 23.16 24 26.17 213
M16 105 2 1.5   19 21 26 9.71 10.29 23.16 24 26.17 222
M16 110 2 1.5   19 21 26 9.71 10.29 23.16 24 26.17 231
M16 115 2 1.5   19 21 26 9.71 10.29 23.16 24 26.17 240
M16 120 2 1.5   19 21 26 9.71 10.29 23.16 24 26.17 249
M16 125 2 1.5   19 21 26 9.71 10.29 23.16 24 26.17 258
M16 130 2 1.5   19 21 26 9.71 10.29 23.16 24 26.17 267
M16 135 2 1.5   19 21 26 9.71 10.29 23.16 24 26.17 276
M16 140 2 1.5   19 21 26 9.71 10.29 23.16 24 26.17 285
M16 145 2 1.5   19 21 26 9.71 10.29 23.16 24 26.17 293
M16 150 2 1.5   19 21 26 9.71 10.29 23.16 24 26.17 302
M18 38 2.5 1.5 2 21.5 23.5 28.5 11.15 11.85 26.16 27 29.56 129
M18 40 2.5 1.5 2 21.5 23.5 28.5 11.15 11.85 26.16 27 29.56 136
M18 42 2.5 1.5 2 21.5 23.5 28.5 11.15 11.85 26.16 27 29.56 143
M18 45 2.5 1.5 2 21.5 23.5 28.5 11.15 11.85 26.16 27 29.56 150
M18 48 2.5 1.5 2 21.5 23.5 28.5 11.15 11.85 26.16 27 29.56 157
M18 50 2.5 1.5 2 21.5 23.5 28.5 11.15 11.85 26.16 27 29.56 161
M18 55 2.5 1.5 2 21.5 23.5 28.5 11.15 11.85 26.16 27 29.56 172
M18 60 2.5 1.5 2 21.5 23.5 28.5 11.15 11.85 26.16 27 29.56 183
M18 65 2.5 1.5 2 21.5 23.5 28.5 11.15 11.85 26.16 27 29.56 194
M18 70 2.5 1.5 2 21.5 23.5 28.5 11.15 11.85 26.16 27 29.56 206
M18 75 2.5 1.5 2 21.5 23.5 28.5 11.15 11.85 26.16 27 29.56 217
M18 80 2.5 1.5 2 21.5 23.5 28.5 11.15 11.85 26.16 27 29.56 228
M18 85 2.5 1.5 2 21.5 23.5 28.5 11.15 11.85 26.16 27 29.56 239
M18 90 2.5 1.5 2 21.5 23.5 28.5 11.15 11.85 26.16 27 29.56 250
M18 95 2.5 1.5 2 21.5 23.5 28.5 11.15 11.85 26.16 27 29.56 261
M18 100 2.5 1.5 2 21.5 23.5 28.5 11.15 11.85 26.16 27 29.56 272
M18 105 2.5 1.5 2 21.5 23.5 28.5 11.15 11.85 26.16 27 29.56 283
M18 110 2.5 1.5 2 21.5 23.5 28.5 11.15 11.85 26.16 27 29.56 295
M18 115 2.5 1.5 2 21.5 23.5 28.5 11.15 11.85 26.16 27 29.56 306
M18 120 2.5 1.5 2 21.5 23.5 28.5 11.15 11.85 26.16 27 29.56 317
M18 125 2.5 1.5 2 21.5 23.5 28.5 11.15 11.85 26.16 27 29.56 328
M18 130 2.5 1.5 2 21.5 23.5 28.5 11.15 11.85 26.16 27 29.56 339
M18 135 2.5 1.5 2 21.5 23.5 28.5 11.15 11.85 26.16 27 29.56 350
M18 140 2.5 1.5 2 21.5 23.5 28.5 11.15 11.85 26.16 27 29.56 361
M18 145 2.5 1.5 2 21.5 23.5 28.5 11.15 11.85 26.16 27 29.56 372
M18 150 2.5 1.5 2 21.5 23.5 28.5 11.15 11.85 26.16 27 29.56 384
M20 40 2.5 1.5 2 22.5 24.5 29.5 12.15 12.85 29.16 30 32.95 178
M20 42 2.5 1.5 2 22.5 24.5 29.5 12.15 12.85 29.16 30 32.95 184
M20 45 2.5 1.5 2 22.5 24.5 29.5 12.15 12.85 29.16 30 32.95 192
M20 48 2.5 1.5 2 22.5 24.5 29.5 12.15 12.85 29.16 30 32.95 200
M20 50 2.5 1.5 2 22.5 24.5 29.5 12.15 12.85 29.16 30 32.95 205
M20 55 2.5 1.5 2 22.5 24.5 29.5 12.15 12.85 29.16 30 32.95 221
M20 60 2.5 1.5 2 22.5 24.5 29.5 12.15 12.85 29.16 30 32.95 235
M20 65 2.5 1.5 2 22.5 24.5 29.5 12.15 12.85 29.16 30 32.95 248
M20 70 2.5 1.5 2 22.5 24.5 29.5 12.15 12.85 29.16 30 32.95 262
M20 75 2.5 1.5 2 22.5 24.5 29.5 12.15 12.85 29.16 30 32.95 275
M20 80 2.5 1.5 2 22.5 24.5 29.5 12.15 12.85 29.16 30 32.95 289
M20 85 2.5 1.5 2 22.5 24.5 29.5 12.15 12.85 29.16 30 32.95 303
M20 90 2.5 1.5 2 22.5 24.5 29.5 12.15 12.85 29.16 30 32.95 316
M20 95 2.5 1.5 2 22.5 24.5 29.5 12.15 12.85 29.16 30 32.95 330
M20 100 2.5 1.5 2 22.5 24.5 29.5 12.15 12.85 29.16 30 32.95 343
M20 105 2.5 1.5 2 22.5 24.5 29.5 12.15 12.85 29.16 30 32.95 357
M20 110 2.5 1.5 2 22.5 24.5 29.5 12.15 12.85 29.16 30 32.95 370
M20 115 2.5 1.5 2 22.5 24.5 29.5 12.15 12.85 29.16 30 32.95 384
M20 120 2.5 1.5 2 22.5 24.5 29.5 12.15 12.85 29.16 30 32.95 398
M20 125 2.5 1.5 2 22.5 24.5 29.5 12.15 12.85 29.16 30 32.95 411
M20 130 2.5 1.5 2 22.5 24.5 29.5 12.15 12.85 29.16 30 32.95 425
M20 135 2.5 1.5 2 22.5 24.5 29.5 12.15 12.85 29.16 30 32.95 439
M20 140 2.5 1.5 2 22.5 24.5 29.5 12.15 12.85 29.16 30 32.95 452
M20 145 2.5 1.5 2 22.5 24.5 29.5 12.15 12.85 29.16 30 32.95 466
M20 150 2.5 1.5 2 22.5 24.5 29.5 12.15 12.85 29.16 30 32.95 479
M22 42 2.5 1.5 2 24.5 26.5 31.5 13.65 14.35 31/33 (32)/34 35.03/37.29 230
M22 45 2.5 1.5 2 24.5 26.5 31.5 13.65 14.35 31/34 (32)/35 35.03/37.30 236
M22 48 2.5 1.5 2 24.5 26.5 31.5 13.65 14.35 31/35 (32)/36 35.03/37.31 245
M22 50 2.5 1.5 2 24.5 26.5 31.5 13.65 14.35 31/36 (32)/37 35.03/37.32 251
M22 55 2.5 1.5 2 24.5 26.5 31.5 13.65 14.35 31/37 (32)/38 35.03/37.33 267
M22 60 2.5 1.5 2 24.5 26.5 31.5 13.65 14.35 31/38 (32)/39 35.03/37.34 283
M22 65 2.5 1.5 2 24.5 26.5 31.5 13.65 14.35 31/39 (32)/40 35.03/37.35 299
M22 70 2.5 1.5 2 24.5 26.5 31.5 13.65 14.35 31/40 (32)/41 35.03/37.36 315
M22 75 2.5 1.5 2 24.5 26.5 31.5 13.65 14.35 31/41 (32)/42 35.03/37.37 332
M22 80 2.5 1.5 2 24.5 26.5 31.5 13.65 14.35 31/42 (32)/43 35.03/37.38 348
M22 85 2.5 1.5 2 24.5 26.5 31.5 13.65 14.35 31/43 (32)/44 35.03/37.39 364
M22 90 2.5 1.5 2 24.5 26.5 31.5 13.65 14.35 31/44 (32)/45 35.03/37.40 381
M22 95 2.5 1.5 2 24.5 26.5 31.5 13.65 14.35 31/45 (32)/46 35.03/37.41 397
M22 100 2.5 1.5 2 24.5 26.5 31.5 13.65 14.35 31/46 (32)/47 35.03/37.42 413
M22 105 2.5 1.5 2 24.5 26.5 31.5 13.65 14.35 31/47 (32)/48 35.03/37.43 430
M22 110 2.5 1.5 2 24.5 26.5 31.5 13.65 14.35 31/48 (32)/49 35.03/37.44 446
M22 115 2.5 1.5 2 24.5 26.5 31.5 13.65 14.35 31/49 (32)/50 35.03/37.45 462
M22 120 2.5 1.5 2 24.5 26.5 31.5 13.65 14.35 31/51 (32)/52 35.03/37.47 479
M22 125 2.5 1.5 2 24.5 26.5 31.5 13.65 14.35 31/52 (32)/53 35.03/37.48 495
M22 130 2.5 1.5 2 24.5 26.5 31.5 13.65 14.35 31/53 (32)/54 35.03/37.49 511
M22 135 2.5 1.5 2 24.5 26.5 31.5 13.65 14.35 31/54 (32)/55 35.03/37.50 527
M22 140 2.5 1.5 2 24.5 26.5 31.5 13.65 14.35 31/55 (32)/56 35.03/37.51 544
M22 145 2.5 1.5 2 24.5 26.5 31.5 13.65 14.35 31/56 (32)/57 35.03/37.52 560
M22 150 2.5 1.5 2 24.5 26.5 31.5 13.65 14.35 31/57 (32)/58 35.03/37.53 576
M24 45 3 2 1.5 26.5 28.5 33.5 14.65 15.35 35 36 39.55 291
M24 48 3 2 1.5 26.5 28.5 33.5 14.65 15.35 35 36 39.55 303
M24 50 3 2 1.5 26.5 28.5 33.5 14.65 15.35 35 36 39.55 311
M24 55 3 2 1.5 26.5 28.5 33.5 14.65 15.35 35 36 39.55 328
M24 60 3 2 1.5 26.5 28.5 33.5 14.65 15.35 35 36 39.55 347
M24 65 3 2 1.5 26.5 28.5 33.5 14.65 15.35 35 36 39.55 366
M24 70 3 2 1.5 26.5 28.5 33.5 14.65 15.35 35 36 39.55 385
M24 75 3 2 1.5 26.5 28.5 33.5 14.65 15.35 35 36 39.55 405
M24 80 3 2 1.5 26.5 28.5 33.5 14.65 15.35 35 36 39.55 424
M24 85 3 2 1.5 26.5 28.5 33.5 14.65 15.35 35 36 39.55 444
M24 90 3 2 1.5 26.5 28.5 33.5 14.65 15.35 35 36 39.55 464
M24 95 3 2 1.5 26.5 28.5 33.5 14.65 15.35 35 36 39.55 482
M24 100 3 2 1.5 26.5 28.5 33.5 14.65 15.35 35 36 39.55 501
M24 105 3 2 1.5 26.5 28.5 33.5 14.65 15.35 35 36 39.55 521
M24 110 3 2 1.5 26.5 28.5 33.5 14.65 15.35 35 36 39.55 540
M24 115 3 2 1.5 26.5 28.5 33.5 14.65 15.35 35 36 39.55 559
M24 120 3 2 1.5 26.5 28.5 33.5 14.65 15.35 35 36 39.55 578
M24 125 3 2 1.5 26.5 28.5 33.5 14.65 15.35 35 36 39.55 597
M24 130 3 2 1.5 26.5 28.5 33.5 14.65 15.35 35 36 39.55 617
M24 135 3 2 1.5 26.5 28.5 33.5 14.65 15.35 35 36 39.55 636
M24 140 3 2 1.5 26.5 28.5 33.5 14.65 15.35 35 36 39.55 655
M24 145 3 2 1.5 26.5 28.5 33.5 14.65 15.35 35 36 39.55 675
M24 150 3 2 1.5 26.5 28.5 33.5 14.65 15.35 35 36 39.55 694
M27 55 3 2     31.5 36.5 16.65 17.35 40 41 45.2 465
M27 60 3 2     31.5 36.5 16.65 17.35 40 41 45.2 489
M27 65 3 2     31.5 36.5 16.65 17.35 40 41 45.2 513
M27 70 3 2     31.5 36.5 16.65 17.35 40 41 45.2 537
M27 75 3 2     31.5 36.5 16.65 17.35 40 41 45.2 561
M27 80 3 2     31.5 36.5 16.65 17.35 40 41 45.2 585
M27 85 3 2     31.5 36.5 16.65 17.35 40 41 45.2 609
M27 90 3 2     31.5 36.5 16.65 17.35 40 41 45.2 634
M27 95 3 2     31.5 36.5 16.65 17.35 40 41 45.2 658
M27 100 3 2     31.5 36.5 16.65 17.35 40 41 45.2 682
M27 105 3 2     31.5 36.5 16.65 17.35 40 41 45.2 706
M27 110 3 2     31.5 36.5 16.65 17.35 40 41 45.2 730
M27 115 3 2     31.5 36.5 16.65 17.35 40 41 45.2 754
M27 120 3 2     31.5 36.5 16.65 17.35 40 41 45.2 779
M27 125 3 2     31.5 36.5 16.65 17.35 40 41 45.2 803
M27 130 3 2     31.5 36.5 16.65 17.35 40 41 45.2 827
M27 135 3 2     31.5 36.5 16.65 17.35 40 41 45.2 851
M27 140 3 2     31.5 36.5 16.65 17.35 40 41 45.2 876
M27 145 3 2     31.5 36.5 16.65 17.35 40 41 45.2 899
M27 150 3 2     31.5 36.5 16.65 17.35 40 41 45.2 924
M27 160 3 2     31.5 36.5 16.65 17.35 40 41 45.2 964
M27 170 3 2     31.5 36.5 16.65 17.35 40 41 45.2 1010
M27 180 3 2     31.5 36.5 16.65 17.35 40 41 45.2 1060
M27 190 3 2     31.5 36.5 16.65 17.35 40 41 45.2 1110
M27 200 3 2     31.5 36.5 16.65 17.35 40 41 45.2 1160
M30 55 3.5 2     34 39 18.58 19.42 45 46 50.85 584
M30 60 3.5 2     34 39 18.58 19.42 45 46 50.85 616
M30 65 3.5 2     34 39 18.58 19.42 45 46 50.85 648
M30 70 3.5 2     34 39 18.58 19.42 45 46 50.85 680
M30 75 3.5 2     34 39 18.58 19.42 45 46 50.85 712
M30 80 3.5 2     34 39 18.58 19.42 45 46 50.85 743
M30 85 3.5 2     34 39 18.58 19.42 45 46 50.85 775
M30 90 3.5 2     34 39 18.58 19.42 45 46 50.85 807
M30 95 3.5 2     34 39 18.58 19.42 45 46 50.85 838
M30 100 3.5 2     34 39 18.58 19.42 45 46 50.85 870
M30 105 3.5 2     34 39 18.58 19.42 45 46 50.85 901
M30 110 3.5 2     34 39 18.58 19.42 45 46 50.85 933
M30 115 3.5 2     34 39 18.58 19.42 45 46 50.85 964
M30 120 3.5 2     34 39 18.58 19.42 45 46 50.85 996
M30 125 3.5 2     34 39 18.58 19.42 45 46 50.85 1030
M30 130 3.5 2     34 39 18.58 19.42 45 46 50.85 1060
M30 135 3.5 2     34 39 18.58 19.42 45 46 50.85 1090
M30 140 3.5 2     34 39 18.58 19.42 45 46 50.85 1120
M30 145 3.5 2     34 39 18.58 19.42 45 46 50.85 1150
M30 150 3.5 2     34 39 18.58 19.42 45 46 50.85 1190
M30 160 3.5 2     34 39 18.58 19.42 45 46 50.85 1240
M30 170 3.5 2     34 39 18.58 19.42 45 46 50.85 1300
M30 180 3.5 2     34 39 18.58 19.42 45 46 50.85 1370
M30 190 3.5 2     34 39 18.58 19.42 45 46 50.85 1430
M30 200 3.5 2     34 39 18.58 19.42 45 46 50.85 1490
M33 60 3.5 2     36 41 20.58 21.42 49 50 55.37 763
M33 65 3.5 2     36 41 20.58 21.42 49 50 55.37 799
M33 70 3.5 2     36 41 20.58 21.42 49 50 55.37 835
M33 75 3.5 2     36 41 20.58 21.42 49 50 55.37 871
M33 80 3.5 2     36 41 20.58 21.42 49 50 55.37 907
M33 85 3.5 2     36 41 20.58 21.42 49 50 55.37 942
M33 90 3.5 2     36 41 20.58 21.42 49 50 55.37 978
M33 95 3.5 2     36 41 20.58 21.42 49 50 55.37 1010
M33 100 3.5 2     36 41 20.58 21.42 49 50 55.37 1050
M33 105 3.5 2     36 41 20.58 21.42 49 50 55.37 1090
M33 110 3.5 2     36 41 20.58 21.42 49 50 55.37 1120
M33 115 3.5 2     36 41 20.58 21.42 49 50 55.37 1160
M33 120 3.5 2     36 41 20.58 21.42 49 50 55.37 1190
M33 125 3.5 2     36 41 20.58 21.42 49 50 55.37 1230
M33 130 3.5 2     36 41 20.58 21.42 49 50 55.37 1260
M33 135 3.5 2     36 41 20.58 21.42 49 50 55.37 1300
M33 140 3.5 2     36 41 20.58 21.42 49 50 55.37 1340
M33 145 3.5 2     36 41 20.58 21.42 49 50 55.37 1370
M33 150 3.5 2     36 41 20.58 21.42 49 50 55.37 1410
M33 160 3.5 2     36 41 20.58 21.42 49 50 55.37 1470
M33 170 3.5 2     36 41 20.58 21.42 49 50 55.37 1540
M33 180 3.5 2     36 41 20.58 21.42 49 50 55.37 1610
M33 190 3.5 2     36 41 20.58 21.42 49 50 55.37 1680
M33 200 3.5 2     36 41 20.58 21.42 49 50 55.37 1750
M36 65 4 3     40 45 21.58 22.42 53.8 55 60.79 1010
M36 70 4 3     40 45 21.58 22.42 53.8 55 60.79 1060
M36 75 4 3     40 45 21.58 22.42 53.8 55 60.79 1100
M36 80 4 3     40 45 21.58 22.42 53.8 55 60.79 1140
M36 85 4 3     40 45 21.58 22.42 53.8 55 60.79 1180
M36 90 4 3     40 45 21.58 22.42 53.8 55 60.79 1230
M36 95 4 3     40 45 21.58 22.42 53.8 55 60.79 1270
M36 100 4 3     40 45 21.58 22.42 53.8 55 60.79 1320
M36 105 4 3     40 45 21.58 22.42 53.8 55 60.79 1360
M36 110 4 3     40 45 21.58 22.42 53.8 55 60.79 1410
M36 115 4 3     40 45 21.58 22.42 53.8 55 60.79 1450
M36 120 4 3     40 45 21.58 22.42 53.8 55 60.79 1500
M36 125 4 3     40 45 21.58 22.42 53.8 55 60.79 1540
M36 130 4 3     40 45 21.58 22.42 53.8 55 60.79 1590
M36 135 4 3     40 45 21.58 22.42 53.8 55 60.79 1630
M36 140 4 3     40 45 21.58 22.42 53.8 55 60.79 1670
M36 145 4 3     40 45 21.58 22.42 53.8 55 60.79 1720
M36 150 4 3     40 45 21.58 22.42 53.8 55 60.79 1760
M36 160 4 3     40 45 21.58 22.42 53.8 55 60.79 1840
M36 170 4 3     40 45 21.58 22.42 53.8 55 60.79 1930
M36 180 4 3     40 45 21.58 22.42 53.8 55 60.79 2020
M36 190 4 3     40 45 21.58 22.42 53.8 55 60.79 2110
M36 200 4 3     40 45 21.58 22.42 53.8 55 60.79 2200
M39 65 4 3     42 47 24.58 25.42 58.8 60 66.44 1220
M39 70 4 3     42 47 24.58 25.42 58.8 60 66.44 1270
M39 75 4 3     42 47 24.58 25.42 58.8 60 66.44 1320
M39 80 4 3     42 47 24.58 25.42 58.8 60 66.44 1370
M39 85 4 3     42 47 24.58 25.42 58.8 60 66.44 1420
M39 90 4 3     42 47 24.58 25.42 58.8 60 66.44 1470
M39 95 4 3     42 47 24.58 25.42 58.8 60 66.44 1520
M39 100 4 3     42 47 24.58 25.42 58.8 60 66.44 1570
M39 105 4 3     42 47 24.58 25.42 58.8 60 66.44 1620
M39 110 4 3     42 47 24.58 25.42 58.8 60 66.44 1670
M39 115 4 3     42 47 24.58 25.42 58.8 60 66.44 1720
M39 120 4 3     42 47 24.58 25.42 58.8 60 66.44 1770
M39 125 4 3     42 47 24.58 25.42 58.8 60 66.44 1820
M39 130 4 3     42 47 24.58 25.42 58.8 60 66.44 1870
M39 135 4 3     42 47 24.58 25.42 58.8 60 66.44 1920
M39 140 4 3     42 47 24.58 25.42 58.8 60 66.44 1970
M39 145 4 3     42 47 24.58 25.42 58.8 60 66.44 2020
M39 150 4 3     42 47 24.58 25.42 58.8 60 66.44 2060
M39 160 4 3     42 47 24.58 25.42 58.8 60 66.44 2160
M39 170 4 3     42 47 24.58 25.42 58.8 60 66.44 2250
M39 180 4 3     42 47 24.58 25.42 58.8 60 66.44 2350
M39 190 4 3     42 47 24.58 25.42 58.8 60 66.44 2450
M39 200 4 3     42 47 24.58 25.42 58.8 60 66.44 2550
M42 70 4.5 3     46 51 25.58 26.42 63.1 65 71.3 1510
M42 75 4.5 3     46 51 25.58 26.42 63.1 65 71.3 1570
M42 80 4.5 3     46 51 25.58 26.42 63.1 65 71.3 1630
M42 85 4.5 3     46 51 25.58 26.42 63.1 65 71.3 1690
M42 90 4.5 3     46 51 25.58 26.42 63.1 65 71.3 1750
M42 95 4.5 3     46 51 25.58 26.42 63.1 65 71.3 1810
M42 100 4.5 3     46 51 25.58 26.42 63.1 65 71.3 1870
M42 105 4.5 3     46 51 25.58 26.42 63.1 65 71.3 1930
M42 110 4.5 3     46 51 25.58 26.42 63.1 65 71.3 1990
M42 115 4.5 3     46 51 25.58 26.42 63.1 65 71.3 2050
M42 120 4.5 3     46 51 25.58 26.42 63.1 65 71.3 2110
M42 125 4.5 3     46 51 25.58 26.42 63.1 65 71.3 2170
M42 130 4.5 3     46 51 25.58 26.42 63.1 65 71.3 2230
M42 135 4.5 3     46 51 25.58 26.42 63.1 65 71.3 2290
M42 140 4.5 3     46 51 25.58 26.42 63.1 65 71.3 2350
M42 145 4.5 3     46 51 25.58 26.42 63.1 65 71.3 2410
M42 150 4.5 3     46 51 25.58 26.42 63.1 65 71.3 2470
M42 160 4.5 3     46 51 25.58 26.42 63.1 65 71.3 2580
M42 170 4.5 3     46 51 25.58 26.42 63.1 65 71.3 2700
M42 180 4.5 3     46 51 25.58 26.42 63.1 65 71.3 2810
M42 190 4.5 3     46 51 25.58 26.42 63.1 65 71.3 2930
M42 200 4.5 3     46 51 25.58 26.42 63.1 65 71.3 3060
M45 75 4.5 3     48 53 27.58 28.42 68.1 70 76.95 1890
M45 80 4.5 3     48 53 27.58 28.42 68.1 70 76.95 1950
M45 85 4.5 3     48 53 27.58 28.42 68.1 70 76.95 2010
M45 90 4.5 3     48 53 27.58 28.42 68.1 70 76.95 2070
M45 95 4.5 3     48 53 27.58 28.42 68.1 70 76.95 2130
M45 100 4.5 3     48 53 27.58 28.42 68.1 70 76.95 2200
M45 105 4.5 3     48 53 27.58 28.42 68.1 70 76.95 2260
M45 110 4.5 3     48 53 27.58 28.42 68.1 70 76.95 2330
M45 115 4.5 3     48 53 27.58 28.42 68.1 70 76.95 2390
M45 120 4.5 3     48 53 27.58 28.42 68.1 70 76.95 2460
M45 125 4.5 3     48 53 27.58 28.42 68.1 70 76.95 2520
M45 130 4.5 3     48 53 27.58 28.42 68.1 70 76.95 2590
M45 135 4.5 3     48 53 27.58 28.42 68.1 70 76.95 2650
M45 140 4.5 3     48 53 27.58 28.42 68.1 70 76.95 2720
M45 145 4.5 3     48 53 27.58 28.42 68.1 70 76.95 2780
M45 150 4.5 3     48 53 27.58 28.42 68.1 70 76.95 2850
M45 160 4.5 3     48 53 27.58 28.42 68.1 70 76.95 2980
M45 170 4.5 3     48 53 27.58 28.42 68.1 70 76.95 3110
M45 180 4.5 3     48 53 27.58 28.42 68.1 70 76.95 3230
M45 190 4.5 3     48 53 27.58 28.42 68.1 70 76.95 3370
M45 200 4.5 3     48 53 27.58 28.42 68.1 70 76.95 3500
M48 80 5 3     51 56 29.58 30.42 73.1 75 82.6 2310
M48 85 5 3     51 56 29.58 30.42 73.1 75 82.6 2390
M48 90 5 3     51 56 29.58 30.42 73.1 75 82.6 2450
M48 95 5 3     51 56 29.58 30.42 73.1 75 82.6 2540
M48 100 5 3     51 56 29.58 30.42 73.1 75 82.6 2640
M48 105 5 3     51 56 29.58 30.42 73.1 75 82.6 2690
M48 110 5 3     51 56 29.58 30.42 73.1 75 82.6 2760
M48 115 5 3     51 56 29.58 30.42 73.1 75 82.6 2840
M48 120 5 3     51 56 29.58 30.42 73.1 75 82.6 2920
M48 125 5 3     51 56 29.58 30.42 73.1 75 82.6 3000
M48 130 5 3     51 56 29.58 30.42 73.1 75 82.6 3070
M48 135 5 3     51 56 29.58 30.42 73.1 75 82.6 3150
M48 140 5 3     51 56 29.58 30.42 73.1 75 82.6 3230
M48 145 5 3     51 56 29.58 30.42 73.1 75 82.6 3300
M48 150 5 3     51 56 29.58 30.42 73.1 75 82.6 3380
M48 160 5 3     51 56 29.58 30.42 73.1 75 82.6 3520
M48 170 5 3     51 56 29.58 30.42 73.1 75 82.6 3670
M48 180 5 3     51 56 29.58 30.42 73.1 75 82.6 3830
M48 190 5 3     51 56 29.58 30.42 73.1 75 82.6 3980
M48 200 5 3     51 56 29.58 30.42 73.1 75 82.6 4140
M52 85 5 3     55 60 32.5 33.5 78.1 80 88.25 2870
M52 90 5 3     55 60 32.5 33.5 78.1 80 88.25 2960
M52 95 5 3     55 60 32.5 33.5 78.1 80 88.25 3050
M52 100 5 3     55 60 32.5 33.5 78.1 80 88.25 3150
M52 105 5 3     55 60 32.5 33.5 78.1 80 88.25 3240
M52 110 5 3     55 60 32.5 33.5 78.1 80 88.25 3330
M52 115 5 3     55 60 32.5 33.5 78.1 80 88.25 3420
M52 120 5 3     55 60 32.5 33.5 78.1 80 88.25 3510
M52 125 5 3     55 60 32.5 33.5 78.1 80 88.25 3610
M52 130 5 3     55 60 32.5 33.5 78.1 80 88.25 3700
M52 135 5 3     55 60 32.5 33.5 78.1 80 88.25 3790
M52 140 5 3     55 60 32.5 33.5 78.1 80 88.25 3890
M52 145 5 3     55 60 32.5 33.5 78.1 80 88.25 3980
M52 150 5 3     55 60 32.5 33.5 78.1 80 88.25 4070
M52 160 5 3     55 60 32.5 33.5 78.1 80 88.25 4240
M52 170 5 3     55 60 32.5 33.5 78.1 80 88.25 4430
M52 180 5 3     55 60 32.5 33.5 78.1 80 88.25 4610
M52 190 5 3     55 60 32.5 33.5 78.1 80 88.25 4800
M52 200 5 3     55 60 32.5 33.5 78.1 80 88.25 4990

DIN 610 Hexagon Fit Bolts are a popular choice for various applications due to their reliable and sturdy design. These bolts are manufactured with precision and adhere to the DIN 610 standard, ensuring consistent quality and compatibility. The hexagon fit design of these bolts allows for easy installation and removal using a wrench or socket. The head of the bolt features six flat sides, providing a secure grip and preventing any slippage during tightening or loosening. This makes DIN 610 Hexagon Fit Bolts ideal for heavy-duty applications that require a strong and secure connection. Whether you are assembling machinery, constructing buildings, or working on automotive projects, these bolts offer the strength and reliability you need. Additionally, DIN 610 Hexagon Fit Bolts are available in various sizes and materials, allowing for flexibility in choosing the right bolt for your specific requirements. So, when it comes to securing your projects with confidence, DIN 610 Hexagon Fit Bolts are a reliable and trusted choice.








Products Gallery

Copyrights. RSG Fasteners. All Rights Reserved.
