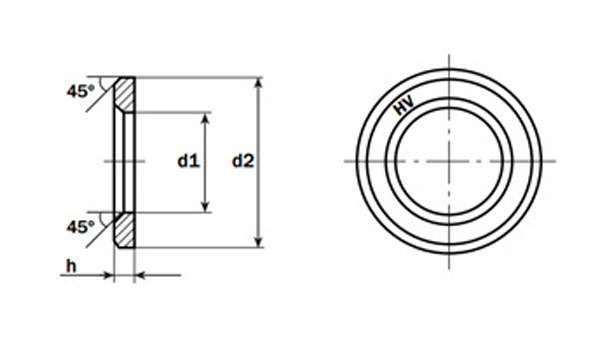

| Size (M) |
d MIN | d MAX | dc MAX | dc MIN | h NORMAL | h MAX | h MIN | c MIN | c MAX | e | Weight (kg/1000 pc) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M12 | 13 | 13.27 | 24 | 23.48 | 3 | 3.3 | 2.7 | 1.6 | 1.9 | 0.5 | 7.03 |
| M16 | 17 | 17.27 | 30 | 29.48 | 4 | 4.3 | 3.7 | 1.6 | 1.9 | 1 | 14.6 |
| M20 | 21 | 21.33 | 37 | 36.38 | 4 | 4.3 | 3.7 | 2 | 2.5 | 1 | 19.6 |
| M22 | 23 | 23.33 | 39 | 38.38 | 4 | 4.3 | 3.7 | 2 | 2.5 | 1 | 24.3 |
| M24 | 25 | 25.33 | 44 | 43.38 | 4 | 4.3 | 3.7 | 2 | 2.5 | 1 | 30.6 |
| M27 | 28 | 28.52 | 50 | 49 | 5 | 5.6 | 4.4 | 2.5 | 3 | 1 | 50.2 |
| M30 | 31 | 31.62 | 56 | 54.8 | 5 | 5.6 | 4.4 | 2.5 | 3 | 1 | 63.2 |
| M36 | 37 | 37.62 | 66 | 64.8 | 6 | 6.6 | 5.4 | 3 | 3.5 | 1.5 | 115 |

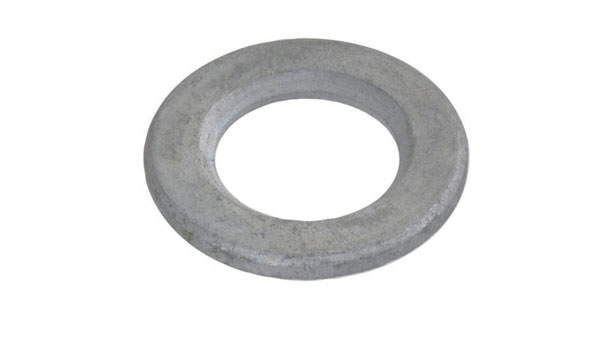

DIN 6916 structural washers, also known as heavy duty washers, are an essential component in various structural applications. These washers are specifically designed to provide extra support and distribute the load evenly across the surface of the bolted joint. Made from high-quality materials such as steel or stainless steel, they offer exceptional strength and durability, ensuring a long-lasting and reliable connection. What sets DIN 6916 washers apart is their large outer diameter and thick profile, which allows them to withstand high levels of pressure and prevent the bolt from digging into the material. This not only enhances the integrity of the joint but also helps to prevent loosening and damage over time. Whether used in construction, machinery, or other heavy-duty applications, DIN 6916 structural washers are the go-to choice for professionals seeking to reinforce their connections and ensure optimum performance and safety.
