DIN 6921

DIN 6921

DIN 6921 Hexagon Flange Bolts Metric

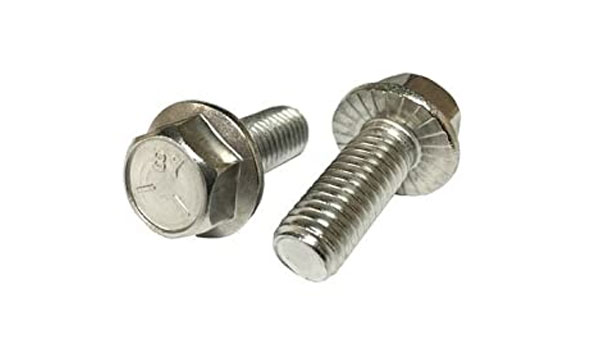

din6921

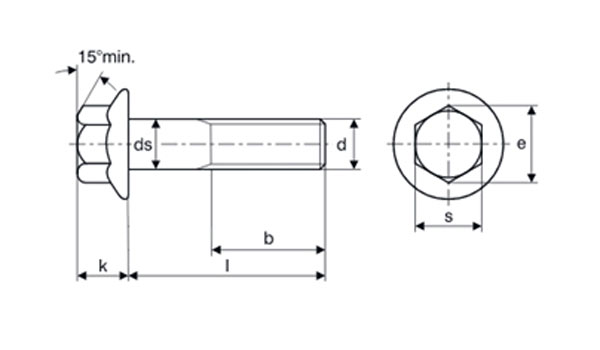

din6921

Steel Grades: 4.6, 4.8, 8.8

Finish: Self, Black, Bright Zinc, Hot Dip Galvanized

Note: All data for information purpose only. For more details on product standards or dimensions, please feel free to contact us at info@rsgfasteners.com


Dimension
(M)		 Length(MM) Length(MM) Pitch b b dc C k (mm) K1 Sw(mm) e (mm) Weight
(kg 1000 pc)
        L≤125 125＜L≤200
M5 10 (+/-) 0.29 0.8 16   11.8 1 5.4 2 8 8.71 3.22
M5 12 (+/-) 0.35 0.8 16   11.8 1 5.4 2 8 8.71 3.46
M5 16 (+/-) 0.35 0.8 16   11.8 1 5.4 2 8 8.71 3.94
M5 20 (+/-) 0.42 0.8 16   11.8 1 5.4 2 8 8.71 4.42
M5 25 (+/-) 0.42 0.8 16   11.8 1 5.4 2 8 8.71 5.25
M5 30 (+/-) 0.42 0.8 16   11.8 1 5.4 2 8 8.71 6.00
M5 35 (+/-) 0.50 0.8 16   11.8 1 5.4 2 8 8.71 6.74
M5 40 (+/-) 0.50 0.8 16   11.8 1 5.4 2 8 8.71 7.48
M5 45 (+/-) 0.50 0.8 16   11.8 1 5.4 2 8 8.71 8.23
M5 50 (+/-) 0.50 0.8 16   11.8 1 5.4 2 8 8.71 8.97
M5 55 (+/-) 0.60 0.8 16   11.8 1 5.4 2 8 8.71 9.71
M5 60 (+/-) 0.60 0.8 16   11.8 1 5.4 2 8 8.71 10.46
M5 65 (+/-) 0.60 0.8 16   11.8 1 5.4 2 8 8.71 11.20
M5 70 (+/-) 0.60 0.8 16   11.8 1 5.4 2 8 8.71 11.94
M5 80 (+/-) 0.60 0.8 16   11.8 1 5.4 2 8 8.71 13.43
M6 12 (+/-) 0.35 1 18   14.2 1.1 6.6 2.5 10 10.95 6.94
M6 16 (+/-) 0.35 1 18   14.2 1.1 6.6 2.5 10 10.95 7.62
M6 20 (+/-) 0.42 1 18   14.2 1.1 6.6 2.5 10 10.95 8.30
M6 25 (+/-) 0.42 1 18   14.2 1.1 6.6 2.5 10 10.95 9.16
M6 30 (+/-) 0.42 1 18   14.2 1.1 6.6 2.5 10 10.95 10.50
M6 35 (+/-) 0.50 1 18   14.2 1.1 6.6 2.5 10 10.95 11.58
M6 40 (+/-) 0.50 1 18   14.2 1.1 6.6 2.5 10 10.95 12.65
M6 45 (+/-) 0.50 1 18   14.2 1.1 6.6 2.5 10 10.95 13.73
M6 50 (+/-) 0.50 1 18   14.2 1.1 6.6 2.5 10 10.95 14.80
M6 55 (+/-) 0.60 1 18   14.2 1.1 6.6 2.5 10 10.95 15.88
M6 60 (+/-) 0.60 1 18   14.2 1.1 6.6 2.5 10 10.95 16.96
M6 65 (+/-) 0.60 1 18   14.2 1.1 6.6 2.5 10 10.95 18.03
M6 70 (+/-) 0.60 1 18   14.2 1.1 6.6 2.5 10 10.95 19.11
M6 80 (+/-) 0.60 1 18   14.2 1.1 6.6 2.5 10 10.95 21.26
M6 90 (+/-) 0.70 1 18   14.2 1.1 6.6 2.5 10 10.95 23.41
M6 100 (+/-) 0.70 1 18   14.2 1.1 6.6 2.5 10 10.95 25.57
M8 12 (+/-) 0.35 1.25 22 28 18 1.2 8.1 3.2 13 14.26 13.76
M8 16 (+/-) 0.35 1.25 22 28 18 1.2 8.1 3.2 13 14.26 15.01
M8 20 (+/-) 0.42 1.25 22 28 18 1.2 8.1 3.2 13 14.26 16.25
M8 25 (+/-) 0.42 1.25 22 28 18 1.2 8.1 3.2 13 14.26 17.80
M8 30 (+/-) 0.42 1.25 22 28 18 1.2 8.1 3.2 13 14.26 19.36
M8 35 (+/-) 0.50 1.25 22 28 18 1.2 8.1 3.2 13 14.26 21.77
M8 40 (+/-) 0.50 1.25 22 28 18 1.2 8.1 3.2 13 14.26 23.68
M8 45 (+/-) 0.50 1.25 22 28 18 1.2 8.1 3.2 13 14.26 25.60
M8 50 (+/-) 0.50 1.25 22 28 18 1.2 8.1 3.2 13 14.26 27.52
M8 55 (+/-) 0.60 1.25 22 28 18 1.2 8.1 3.2 13 14.26 29.44
M8 60 (+/-) 0.60 1.25 22 28 18 1.2 8.1 3.2 13 14.26 31.36
M8 65 (+/-) 0.60 1.25 22 28 18 1.2 8.1 3.2 13 14.26 33.27
M8 70 (+/-) 0.60 1.25 22 28 18 1.2 8.1 3.2 13 14.26 35.19
M8 80 (+/-) 0.60 1.25 22 28 18 1.2 8.1 3.2 13 14.26 39.03
M8 90 (+/-) 0.70 1.25 22 28 18 1.2 8.1 3.2 13 14.26 42.87
M8 100 (+/-) 0.70 1.25 22 28 18 1.2 8.1 3.2 13 14.26 46.70
M10 12 (+/-) 0.35 1.50 32 36 22.3 1.5 9.2 3.6 15 16.5 24.04
M10 16 (+/-) 0.35 1.50 32 36 22.3 1.5 9.2 3.6 15 16.5 26.01
M10 20 (+/-) 0.42 1.50 32 36 22.3 1.5 9.2 3.6 15 16.5 27.97
M10 25 (+/-) 0.42 1.50 32 36 22.3 1.5 9.2 3.6 15 16.5 30.42
M10 30 (+/-) 0.42 1.50 32 36 22.3 1.5 9.2 3.6 15 16.5 32.88
M10 35 (+/-) 0.50 1.50 32 36 22.3 1.5 9.2 3.6 15 16.5 35.33
M10 40 (+/-) 0.50 1.50 32 36 22.3 1.5 9.2 3.6 15 16.5 39.18
M10 45 (+/-) 0.50 1.50 32 36 22.3 1.5 9.2 3.6 15 16.5 42.20
M10 50 (+/-) 0.50 1.50 32 36 22.3 1.5 9.2 3.6 15 16.5 45.21
M10 55 (+/-) 0.60 1.50 32 36 22.3 1.5 9.2 3.6 15 16.5 48.23
M10 60 (+/-) 0.60 1.50 32 36 22.3 1.5 9.2 3.6 15 16.5 51.24
M10 65 (+/-) 0.60 1.50 32 36 22.3 1.5 9.2 3.6 15 16.5 54.25
M10 70 (+/-) 0.60 1.50 32 36 22.3 1.5 9.2 3.6 15 16.5 57.27
M10 80 (+/-) 0.60 1.50 32 36 22.3 1.5 9.2 3.6 15 16.5 63.29
M10 90 (+/-) 0.70 1.50 32 36 22.3 1.5 9.2 3.6 15 16.5 69.32
M10 100 (+/-) 0.70 1.50 32 36 22.3 1.5 9.2 3.6 15 16.5 75.35
M10 110 (+/-) 0.70 1.50 32 36 22.3 1.5 9.2 3.6 15 16.5 81.38
M10 120 (+/-) 0.70 1.50 32 36 22.3 1.5 9.2 3.6 15 16.5 87.40
M10 130 (+/-) 0.80 1.50 32 36 22.3 1.5 9.2 3.6 15 16.5 92.76
M12 20 (+/-) 0.42 1.75 30 36 26.6 1.8 11.5 4.6 16 17.62 44.35
M12 25 (+/-) 0.42 1.75 30 36 26.6 1.8 11.5 4.6 16 17.62 47.90
M12 30 (+/-) 0.42 1.75 30 36 26.6 1.8 11.5 4.6 16 17.62 51.46
M12 35 (+/-) 0.50 1.75 30 36 26.6 1.8 11.5 4.6 16 17.62 55.02
M12 40 (+/-) 0.50 1.75 30 36 26.6 1.8 11.5 4.6 16 17.62 58.57
M12 45 (+/-) 0.50 1.75 30 36 26.6 1.8 11.5 4.6 16 17.62 64.20
M12 50 (+/-) 0.50 1.75 30 36 26.6 1.8 11.5 4.6 16 17.62 68.54
M12 55 (+/-) 0.60 1.75 30 36 26.6 1.8 11.5 4.6 16 17.62 72.87
M12 60 (+/-) 0.60 1.75 30 36 26.6 1.8 11.5 4.6 16 17.62 77.21
M12 65 (+/-) 0.60 1.75 30 36 26.6 1.8 11.5 4.6 16 17.62 81.55
M12 70 (+/-) 0.60 1.75 30 36 26.6 1.8 11.5 4.6 16 17.62 85.89
M12 80 (+/-) 0.60 1.75 30 36 26.6 1.8 11.5 4.6 16 17.62 94.56
M12 90 (+/-) 0.70 1.75 30 36 26.6 1.8 11.5 4.6 16 17.62 103.2
M12 100 (+/-) 0.70 1.75 30 36 26.6 1.8 11.5 4.6 16 17.62 111.90
M12 110 (+/-) 0.70 1.75 30 36 26.6 1.8 11.5 4.6 16 17.62 120.60
M12 120 (+/-) 0.70 1.75 30 36 26.6 1.8 11.5 4.6 16 17.62 129.30
M12 130 (+/-) 0.80 1.75 30 36 26.6 1.8 11.5 4.6 16 17.62 137.00
M12 140 (+/-) 0.80 1.75 30 36 26.6 1.8 11.5 4.6 16 17.62 145.70
M14 25 (+/-) 0.42 2 34 40 30.5 2.1 12.8 5.1 18 19.86 66.13
M14 30 (+/-) 0.42 2 34 40 30.5 2.1 12.8 5.1 18 19.86 71.01
M14 35 (+/-) 0.50 2 34 40 30.5 2.1 12.8 5.1 18 19.86 75.89
M14 40 (+/-) 0.50 2 34 40 30.5 2.1 12.8 5.1 18 19.86 80.76
M14 45 (+/-) 0.50 2 34 40 30.5 2.1 12.8 5.1 18 19.86 85.64
M14 50 (+/-) 0.50 2 34 40 30.5 2.1 12.8 5.1 18 19.86 93.45
M14 55 (+/-) 0.60 2 34 40 30.5 2.1 12.8 5.1 18 19.86 99.37
M14 60 (+/-) 0.60 2 34 40 30.5 2.1 12.8 5.1 18 19.86 105.30
M14 65 (+/-) 0.60 2 34 40 30.5 2.1 12.8 5.1 18 19.86 111.20
M14 70 (+/-) 0.60 2 34 40 30.5 2.1 12.8 5.1 18 19.86 117.10
M14 80 (+/-) 0.60 2 34 40 30.5 2.1 12.8 5.1 18 19.86 129.00
M14 90 (+/-) 0.70 2 34 40 30.5 2.1 12.8 5.1 18 19.86 140.80
M14 100 (+/-) 0.70 2 34 40 30.5 2.1 12.8 5.1 18 19.86 152.70
M14 110 (+/-) 0.70 2 34 40 30.5 2.1 12.8 5.1 18 19.86 164.50
M14 120 (+/-) 0.70 2 34 40 30.5 2.1 12.8 5.1 18 19.86 176.40
M14 130 (+/-) 0.80 2 34 40 30.5 2.1 12.8 5.1 18 19.86 187.00
M14 140 (+/-) 0.80 2 34 40 30.5 2.1 12.8 5.1 18 19.86 198.80
M14 150 (+/-) 0.80 2 34 40 30.5 2.1 12.8 5.1 18 19.86 210.70
M16 25 (+/-) 0.42 2 38 44 35 2.4 14.4 5.8 21 23.15 83.82
M16 30 (+/-) 0.42 2 38 44 35 2.4 14.4 5.8 21 23.15 90.37
M16 35 (+/-) 0.50 2 38 44 35 2.4 14.4 5.8 21 23.15 96.92
M16 40 (+/-) 0.50 2 38 44 35 2.4 14.4 5.8 21 23.15 103.5
M16 45 (+/-) 0.50 2 38 44 35 2.4 14.4 5.8 21 23.15 110.00
M16 50 (+/-) 0.50 2 38 44 35 2.4 14.4 5.8 21 23.15 116.60
M16 55 (+/-) 0.60 2 38 44 35 2.4 14.4 5.8 21 23.15 126.70
M16 60 (+/-) 0.60 2 38 44 35 2.4 14.4 5.8 21 23.15 134.50
M16 65 (+/-) 0.60 2 38 44 35 2.4 14.4 5.8 21 23.15 142.30
M16 70 (+/-) 0.60 2 38 44 35 2.4 14.4 5.8 21 23.15 150.00
M16 80 (+/-) 0.60 2 38 44 35 2.4 14.4 5.8 21 23.15 166.00
M16 90 (+/-) 0.70 2 38 44 35 2.4 14.4 5.8 21 23.15 181.10
M16 100 (+/-) 0.70 2 38 44 35 2.4 14.4 5.8 21 23.15 197.00
M16 110 (+/-) 0.70 2 38 44 35 2.4 14.4 5.8 21 23.15 212.00
M16 120 (+/-) 0.70 2 38 44 35 2.4 14.4 5.8 21 23.15 228.00
M16 130 (+/-) 0.80 2 38 44 35 2.4 14.4 5.8 21 23.15 242.00
M16 140 (+/-) 0.80 2 38 44 35 2.4 14.4 5.8 21 23.15 257.00
M16 150 (+/-) 0.80 2 38 44 35 2.4 14.4 5.8 21 23.15 273.00

DIN 6921 Hexagon Flange Bolts, also known as flange head bolts or frame bolts, are an essential component in various industries and applications. These specialized bolts feature a built-in flange under the head, which provides a larger load-bearing surface and eliminates the need for separate washers. This unique design offers several advantages, such as increased stability, improved distribution of force, and enhanced resistance to loosening due to vibrations. The flange also acts as a protective barrier, preventing dirt, moisture, and other contaminants from entering the joint, ensuring a longer lifespan for the bolt and the assembled components. DIN 6921 Hexagon Flange Bolts are commonly used in automotive, construction, and industrial settings, where reliability, strength, and ease of installation are crucial. Whether it's securing structural beams, machinery, or automotive components, these bolts offer a reliable and efficient solution.
