| Size (M) |

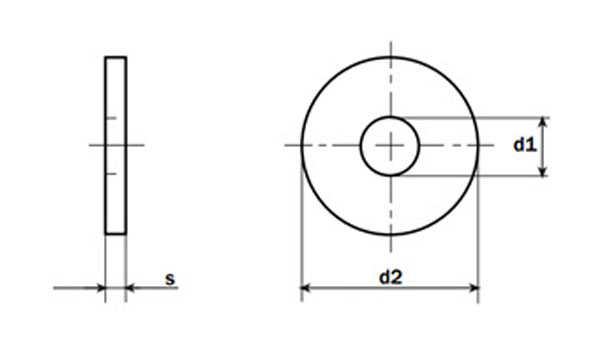

d1 MIN | d1 MAX | dc MAX | dc MIN | h NOMINAL | h MAX | h MIN | Weight (kg/1000 pc) |
|---|---|---|---|---|---|---|---|---|
| M2.5 | 2.7 | 2.84 | 8 | 7.64 | 0.8 | 0.9 | 0.7 | 0.28 |
| M3 | 3.2 | 3.38 | 9 | 8.64 | 0.8 | 0.9 | 0.7 | 0.349 |
| M3.5 | 3.7 | 3.88 | 11 | 10.6 | 0.8 | 0.9 | 0.7 | 0.529 |
| M4 | 4.3 | 4.48 | 12 | 11.6 | 1 | 1.1 | 0.9 | 0.774 |
| M5 | 5.3 | 5.48 | 15 | 14.6 | 1.2 | 1.4 | 1 | 1.460 |
| M6 | 6.4 | 6.62 | 18 | 17.6 | 1.6 | 1.8 | 1.4 | 2.790 |
| M7 | 7.4 | 7.62 | 22 | 21.5 | 2 | 2.2 | 1.8 | 5.290 |
| M8 | 8.4 | 8.62 | 24 | 23.5 | 2 | 2.2 | 1.8 | 6.230 |
| M10 | 10.5 | 10.77 | 30 | 29.5 | 2.5 | 2.7 | 2.3 | 12.200 |
| M12 | 13 | 13.27 | 37 | 36.4 | 3 | 3.3 | 2.7 | 22.200 |
| M14 | 15 | 15.27 | 44 | 43.4 | 3 | 3.3 | 2.7 | 31.600 |
| M16 | 17 | 17.27 | 50 | 49.4 | 3 | 3.3 | 2.7 | 40.900 |
| M18 | 20 | 20.52 | 56 | 54.1 | 4 | 4.6 | 3.4 | 67.400 |
| M20 | 22 | 22.52 | 60 | 58.1 | 4 | 4.6 | 3.4 | 76.800 |
| M24 | 26 | 26.84 | 72 | 70.1 | 5 | 6 | 4 | 139 |
| M30 | 33 | 34 | 92 | 89.8 | 6 | 7 | 5 | 273 |
| M36 | 39 | 40 | 110 | 108 | 8 | 9.2 | 6.8 | 522 |

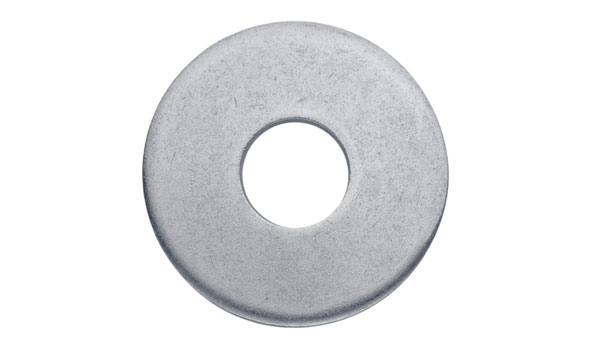

DIN 9021/ISO 7093 flat washers may seem like a small and insignificant component, but they play a crucial role in various industries and applications. These washers are designed with a large outer diameter and a smaller inner diameter, creating a flat surface that distributes the load evenly across the fastener or bolt. This helps prevent damage to the material and ensures a secure and tight connection. DIN 9021/ISO 7093 flat washers are commonly used in construction, automotive, and manufacturing industries, where they provide stability and reinforcement. They are also essential for maintaining the integrity of structures and machinery, as they help prevent loosening and reduce the risk of vibration-induced failures. With their precise dimensions and durability, these washers are built to withstand heavy loads and extreme conditions, making them a reliable choice for professionals and DIY enthusiasts alike. Whether you're assembling furniture, constructing a building, or working on a mechanical project, don't underestimate the importance of DIN 9021/ISO 7093 flat washers in ensuring the longevity and safety of your work.
