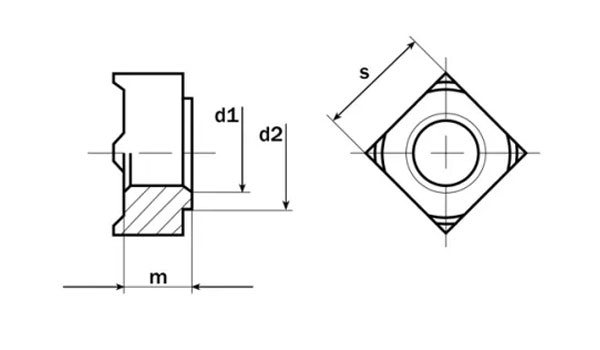

| Size (M) |
Pitch | b Nominal | b MAX | b MIN | d1 Nominal Min (H13) | d1 MAX | d2 MAX | d3 MIN | e | h1 Nominal | h1 MAX | h1 MIN | h2 MIN | h2 MAX | m Nominal max (H13) | m MIN | s Nominal max (H13) | s MIN | Ensure the Load (N) | Weight (kg/1000 pc) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M4 | 0.7 | 0.8 | 0.95 | 0.65 | 5 | 5.18 | 4.2 | 6.4 | 9 | 0.6 | 0.7 | 0.5 | 0.4 | 1.3 | 3.5 | 3.2 | 7 | 6.64 | 6800 | 0.81 |
| M5 | 0.8 | 1 | 1.15 | 0.85 | 6 | 6.18 | 5.25 | 8.2 | 12 | 0.8 | 0.9 | 0.7 | 0.6 | 1.5 | 4.2 | 3.9 | 9 | 8.64 | 11000 | 1.7 |
| M6 | 1 | 1.2 | 1.35 | 1.05 | 7.5 | 7.72 | 6.3 | 9.1 | 13 | 0.8 | 0.9 | 0.7 | 0.7 | 1.8 | 5 | 4.7 | 10 | 9.64 | 15500 | 2.4 |
| M8 | 1.25 | 1.5 | 1.65 | 1.35 | 10 | 10.22 | 8.4 | 12.8 | 18 | 1 | 1.1 | 0.9 | 1.1 | 2 | 6.5 | 6.14 | 14 | 13.57 | 28300 | 6.5 |
| M10 | 1.5 | 1.8 | 2 | 1.6 | 12.5 | 12.77 | 10.5 | 15.6 | 22 | 1.2 | 1.3 | 1.1 | 1.25 | 2.2 | 8 | 7.64 | 17 | 16.57 | 44800 | 11.3 |
| M12 | 1.75 | 2 | 2.2 | 1.8 | 13.5 | 13.77 | 12.6 | 17.4 | 25 | 1.4 | 1.5 | 1.3 | 1.75 | 3 | 9.5 | 9.14 | 19 | 18.48 | 65300 | 16.5 |
| M14 | 2 | 2.5 | 2.7 | 2.3 | 16.8 | 17.07 | 14.7 | 20.4 | 28 | 1.4 | 1.5 | 1.3 | 1.75 | 3.2 | 11 | 10.57 | 22 | 21.48 | 89700 | 26.7 |
| M16 | 2 | 2.5 | 2.7 | 2.3 | 18.8 | 19.13 | 16.8 | 22.4 | 32 | 1.6 | 1.7 | 1.5 | 2 | 4 | 13 | 12.57 | 24 | 23.48 | 123000 | 35.8 |

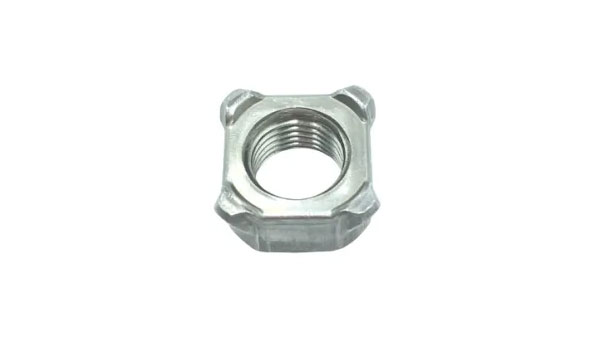

The DIN 928 square weld nut is a versatile and practical fastener commonly used in various industries and applications. This type of nut is designed with four equally sized, square-shaped projections, allowing it to be easily welded onto a metal surface. The square shape provides a stable and secure connection, ensuring that the nut remains in place even under high levels of vibration or stress. With its compact size and robust construction, the DIN 928 square weld nut is ideal for use in automotive, construction, and machinery industries, among others. It offers a reliable and efficient method for creating strong joints and connections, making it a popular choice for professionals and DIY enthusiasts alike. So whether you are building a new structure or repairing an existing one, the DIN 928 square weld nut is a reliable and effective solution to meet your fastening need.
