NFE 25513-Flat Washers | NFE 25513 Weights

An ISO 9001:2015 Certified Company

NFE 25513

Flat Washer

NFE 25513 Washers


nfe 25513 1
nfe 25513 2

Steel Grades: 4.6, 4.8, 8.8

Finish: Self, Black, Bright Zinc, Hot Dip Galvanized

Note: All data for information purpose only. For more details on product standards or dimensions, please feel free to contact us at info@rsgfasteners.com

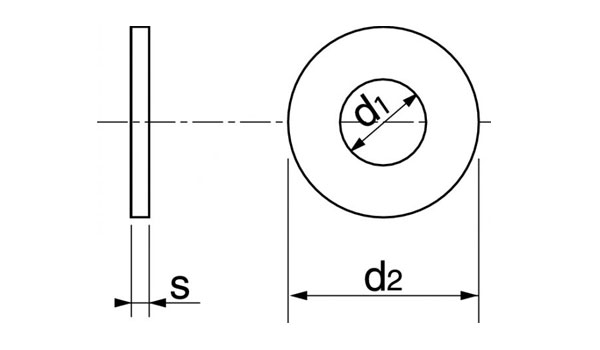

Dimension
(M)
D1 D1 D2 D2 s s Weight
(kg 1000 pc)
  Min Max Min Max Min Max
M3 3.2 3.38 8.00 10.0 0.72 0.88 0.266
M4 4.3 4.48 9.64 10.0 0.72 0.88 0.404
M5 5.3 5.48 11.57 12.0 0.90 1.10 0.717
M6 6.4 6.62 13.57 14.0 1.08 1.32 1.152
M7 7.4 7.62 15.57 16.0 1.35 1.65 1.869
M8 8.4 8.62 17.57 18.0 1.35 1.65 2.353
M10 10.5 10.77 21.48 22.0 1.80 2.20 4.627
M12 13.0 13.27 26.48 27.0 2.25 2.75 8.666
M14 15.0 15.27 29.48 30.0 2.25 2.75 10.446
M16 17.0 17.27 31.38 32.0 2.70 3.30 13.649
M18 19.0 19.33 35.38 36.0 2.70 3.30 17.363
M20 21.0 21.33 39.38 40.0 2.70 3.30 21.523
M22 23.0 23.33 44.38 45.0 2.70 3.30 27.781
M24 25.0 25.33 49.38 50.0 3.60 4.40 46.425
M27 28.0 28.33 54.26 55.0 3.60 4.40 55.487
M30 31.0 31.39 59.26 60.0 3.60 4.40 65.342
M33 34.0 34.62 63.80 65.0 4.50 5.50 94.986
M36 37.0 37.62 68.80 70.0 4.50 5.50 109.284
M39 40.0 40.62 73.80 75.0 5.40 6.60 149.489
M42 43.0 43.62 78.80 80.0 5.40 6.60 169.024
M45 46.0 46.62 83.60 85.0 6.30 7.70 221.373
M48 50.0 50.62 88.60 90.0 6.30 7.70 242.648
M52 54.0 54.74 98.60 100.0 7.20 8.80 350.800

NFE 25513, also known as Non-Formal Education (NFE) 25513, is an intriguing topic that delves into the realm of alternative education methods. NFE 25513 focuses on providing education and learning experiences outside of traditional formal schooling settings. This could include programs and initiatives that cater to individuals who have missed out on formal education, such as dropouts or adults seeking to further their knowledge and skills. NFE 25513 aims to bridge the gap between formal education and the needs of those who have been left behind by the traditional system. It emphasizes flexible learning methods, personalized instruction, and practical skills development. By recognizing the diverse learning needs and circumstances of individuals, NFE 25513 opens up opportunities for a wider range of people to access education and improve their lives. Through its innovative approaches, NFE 25513 challenges the notion that education can only be obtained within the confines of a classroom, offering a new perspective on how knowledge can be acquired and shared.
